Piccolo® object protection
Object protection, climate monitoring, personal protection
Piccolo® is the professional and proven solution to object surveillance and protection. The system can be expanded to handle climate monitoring.
Piccolo® – professional object protection
A flexible, simple and secure solution for museums, collections, churches, etc.
Combined object protection and climate monitoring for museums
Piccolo® is the professional and proven solution to object protection. The system can also be expanded to handle climate monitoring.
Piccolo® is a wireless alarm and surveillance system that is flexible and easy to install.
Piccolo® is installed in more than 500 of the leading museums in Europe.
Sensors for all purposes
A complete selection of wireless detectors and sensors makes it easy to tailor the system to suit the tasks needed.
Piccolo® is available in three versions:
Piccolo® Air
For the small collection or museum. Setup can be done on a mobile phone or over the internet with masterView®. Up to 60 detectors can be connected.
Piccolo® Light
For small and medium-sized museums. Setup can be done on the included touch screen, on a mobile phone or online with masterView®. Up to 126 detectors.
Piccolo® Server
For large museums. This solution is built in SQL database and has a high level of security. It is possible to create an unlimited number of alarm zones. Up to 5000 detectors can be connected.
Sensors and detectors for the Piccolo® system:
combiSpot
Profort no. 004720
buzzerSpot
Wireless detector with acoustic signal. Activated by shaking or magnet. The detector is especially suitable for placement on the back of paintings. The sensitivity can be adjusted, so that alarm is only sent after repeated vibrations and acoustic signal. Battery included.
Profort no. 004340
infraSpot
Wireless detector which is activated when distance to an object is changed (0-3 cm). The detector is suitable for placement under the base of sculptures or behind paintings. Battery included.
Profort no. 004760
infraSpot med buzzer
Wireless detector with acoustic signal which is activated when distance to an object is changed (0-3 cm). The detector is suitable for placement under sculptures or behind paintings. Battery included.
Profort no. 004765
climaSpot
Wireless detector with temperature and humidity sensor. Used in rooms or showcases. Battery included.
Profort no. 004860
luxSpot
Wireless detector with built-in light sensor for measuring lux values. luxSpot has been adapted to use in indoor installations. Battery included.
Profort no. 008310

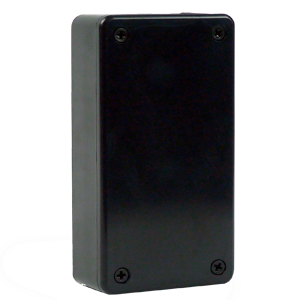

inSpot
Allround unit which connects wirelessly to any kind of sensor. Can be adapted for many purposes. With screw terminal for connection to external wired sensor. Battery included. Mounting in waterproof box optional (007575)
Profort no. 007560
ultraSpot
Wireless detector which is activated by movement in front of the device. Especially suitable for securing display cases. Sensitivity is adjustable. Battery included.
Profort no. 007580

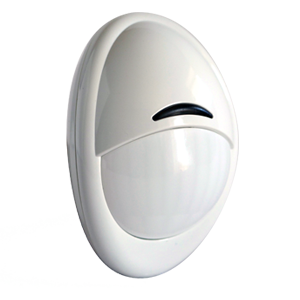

Standard PIR
Wireless detector which is activated by movement in front of the device. Especially suitable for securing display cases. Sensitivity is adjustable. Battery included.
Profort no. 007580

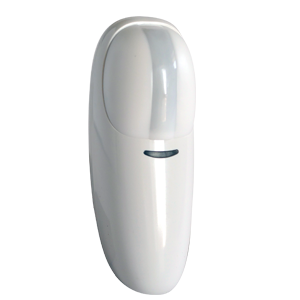

Curtain PIR
Movement detector with extra narrow coverage. Wireless PIR detector which is activated by movement in front of the device. Sensitivity is adjustable. Battery included.
Profort no. 007686
Personal alarm
Portable alarmtransmitter which is activated at the touch of a button. The device has two different alarms. One for a short push and one for a long push, representing two levels: ATTACK and ASSISTANCE. Battery included.
Profort no. 004280
With metal base for magnetic holder: Profort no. 004266.
Small personal alarm
Activated at the touch of a button. Small and compact. The device has two diferent alarms. One for a short push and one for a long push, representing two levels: ATTACK and ASSISTANCE. Battery included.
Profort no. 004365
Receivers and other equipment for the Piccolo® system:
Alarm receiver PoE
Receives wireless alarms on Piccolo.
Connects to an existing LAN and is powered from LAN or connected to RS485 serial. One relay output included.
Profort no. : 004756
Alarm receiver PoE, battery Profort no.:004756
Repeater
The device receives and forwards wireless signals thus increasing the range of wireless detectors. Connects to 230V.
Profort no. : 008410
Relay interface PoE
Relay module for Piccolo. This achieves 8 potential free relay outputs (C, NC, NO) and one input. The input can also be used to reset the alarm.
Connects to an existing LAN and is powered from LAN or connected to RS485 serial.
Profort no. : 004830
Alarm receiver
Receiver of wireless alarms on Piccolo.
Connects to Piccolo’s serial RS485 bus via screw terminals and is powered from the central unit. One relay output included.
Profort no. : 004740
Alarm receiver, battery Profort no.: 004743
Relay-interface
Relay module for Piccolo. This achieves 8 potential free relay outputs (C, NC, NO) and one input. The input can also be used to reset the alarm.
Connects to Piccolo’s serial RS485 bus via screw terminals and is powered from the central unit.
Profort no. : 004825
Accessories for Piccolo®
Battery (button cell)
Battery for combiSpot, infraSpot, personal alarm and remote control. 3,0 V lithium battery CR2354.
Profort item no.: 004029
Battery (½ AA)
Battery for pirSpot and personal alarm. 3,6 V lithium battery, size ½ AA.
Profort item no.: 007696
Battery (AA)
Battery for inSpot, flexSpot and ultraSpot.
3,6 V lithium battery, size AA.
Profort item no.: 007307
Holder for remote control / personal alarm
Holder for remote control and personal alarm.
Wall bracket for remote control.
Profort item no.: 004280
Several uses
Securing paintings
combiSpot and buzzerSpot can be placed on the painting, e.g. on the frame.
Securing paintings 2
infraSpot is placed on the wall by the middle of the back of the painting to prevent sabotage.
Freestanding objects
ultraSpot can be placed in the corner of the showcase and registers if the object is moved.
Flexibility
inSpot can receive (wired) input from many different detectors, e.g. load cells, AIR detectors, spring contacts, magnet switches and tilt switches.
Compact and discreet
Most of the detectors are not much bigger than a matchbox and no thicker than three matches, which makes discreet placement easy.
About the detectors
Piccolo® detectors emits an ‘OK signal’ every 4 minutes. The system monitors these and sends an alert if a detector has failed to report back for a period of time. This can be due to poor transmission conditions or battery failure.
When the detectors send an alarm, they emit several signals over a period of 10 seconds for optimal security in the transmission of alarms.
In case of battery running low, the sensors emits an alert.
In case of poor transmission conditions or long distances, inserting a repeater (007800) can be useful.
Specifications
- 868 MHz approved for alarm transmission
- Range up to 1000 m in open air
- OK signal every 4 minutes
- Alert in case of transmission error
- Alert in case of low battery
- Battery life in sensors: up to 5 years
- Battery included
